High Speed Slitter Rewinder Machine

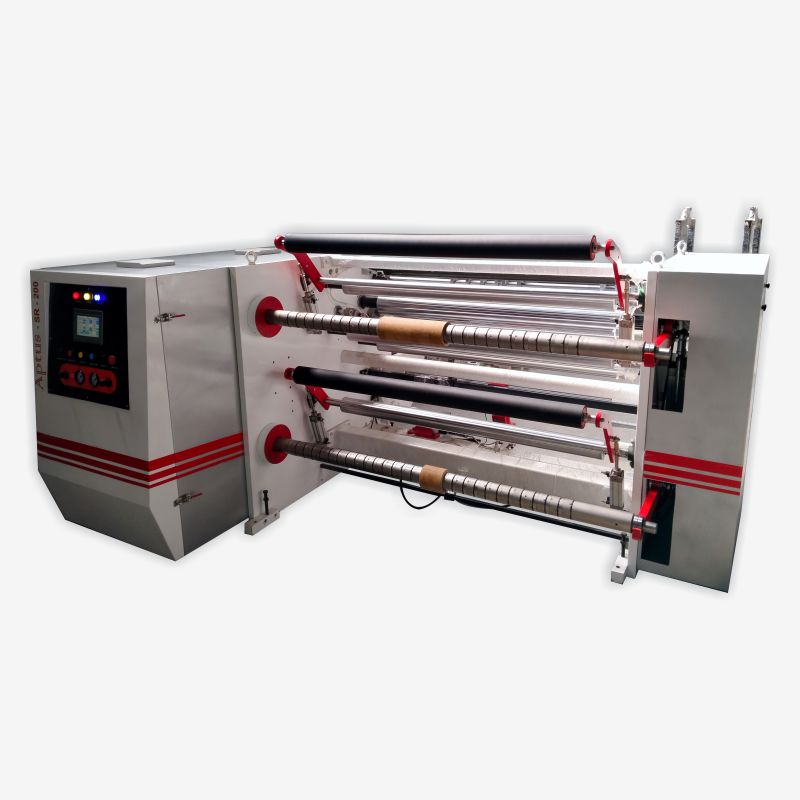

Aptus – SR – 500
Main Features:
- Saparate Shaftless Unwinder with Hydraulic Floor Lifting
- Top and Bottom Direction Unwinder Roll Provision
- Both Rewinder Motor Individual Driven
- Slitting with Razor Blade System and Rotary Cutter
- All Motor are A-Sys-Servo Motor
- Torque Chuck in Unwinder Roll Loading
- Size Adjustable Layon Roll System
- Manual Core Position Laser Line System
- Active Static Eliminator For Remove Static
- Auto Rotate Take-off unit Provide
- All Side Covered Safety System to avoid Smallest Accident
Material To be slit:
- BOPP, BOPET, PET, LDPE,Plain-Printed Film, Coated OR Metallised (20 Micron to Micron)
- Laminated Film: Up to 350 Micron
- Rigid Film: 350 Micron
- Paper up to 200 GSM
- Foil : Blister Foil, ALu Alu Foil, and Laminated Foil,
Optional features:
- Rewinder on 152mm Core ID
- Auto Pick and Place Finish Roll To Take off Unit
- Trim Winder Unit for Collect Waste Trim
TECHNICAL SPECIFICATION
| PARTICULAR | TECHNICAL SPECIFICATION |
|---|---|
| Model | Aptus – SR – 500 |
| Unwinder Type | Shaftless With Hydraulic Floor Lifting |
| Machine Max Web Width | 1300mm / 1600mm |
| Machine Min Web Width | 400mm / 600mm |
| Maximum Unwinder Dia | 1000 mm |
| Maximum Unwinder Weight | 1000 kg |
| Maxium Rewinder Dia | 600 mm |
| Maximum Rewinder weight | 200 Kg Each Shaft |
| Maximum Slitting Size | 800 mm |
| Minimum Slitting Width | 50mm and 25mm Optional |
| Unwinder Core ID | 76mm and 152mm |
| Rewinder Core ID | 76mm and 152 Optional |
| Speed | 500 MPM |
| Material To be proceed | 10 Microns to 180microns (Film / Foil / Paper / Laminates ) |

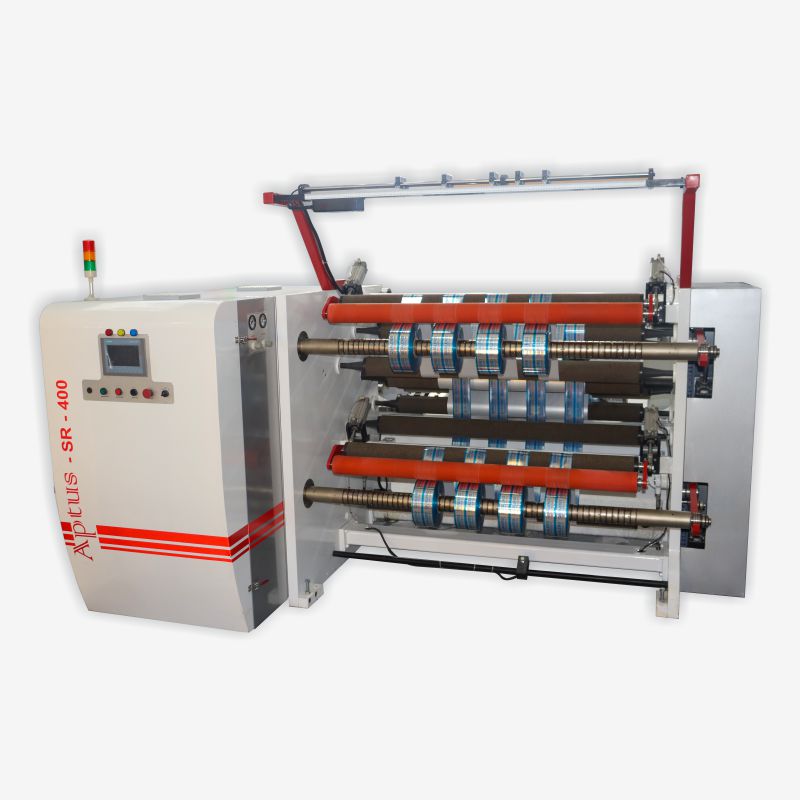

Aptus – SR – 400
Main Features:
- Intrigated Shaftless With Hydraulic Floor Lifting
- Top and Bottom Direction Unwinder Roll Provision
- Slitting with Razor Blade System and Rotary Cutter
- All Motor are A-Sys-Servo Motor
- Torque Chuck in Unwinder Roll Loading
- Size Adjustable Layon Roll System
Material To be slit:
- BOPP, BOPET, PET, LDPE,Plain-Printed Film, Coated OR Metallised (20 Micron to Micron)
- Laminated Film: Up to 350 Micron
- Rigid Film: 350 Micron
- Paper up to 200 GSM
- Foil : Blister Foil, ALu Alu Foil, and Laminated Foil,
Optional features:
- Manual / Auto Core Position Laser Line System
- Rewinder on 152mm Core ID
- Auto Pick and Place Finish Roll To Take off Unit
- Trim Winder Unit for Collect Waste Trim
TECHNICAL SPECIFICATION
| PARTICULAR | TECHNICAL SPECIFICATION |
|---|---|
| Model | Aptus – SR –400 |
| Unwinder Type | Shaftless With Hydraulic Floor Lifting |
| Machine Max Web Width | 1300mm / 1600mm |
| Machine Min Web Width | 400mm / 600mm |
| Maximum Unwinder Dia | 1000 mm |
| Maximum Unwinder Weight | 1000 kg |
| Maxium Rewinder Dia | 600 mm |
| Maximum Rewinder weight | 200 Kg Each Shaft |
| Maximum Slitting Size | 800 mm |
| Minimum Slitting Width | 50mm and 25mm Optional |
| Unwinder Core ID | 76mm and 152mm |
| Rewinder Core ID | 76mm and 152 Optional |
| Speed | 400 MPM |
| Material To be proceed | 10 Microns to 180microns (Film / Foil / Paper / Laminates ) |

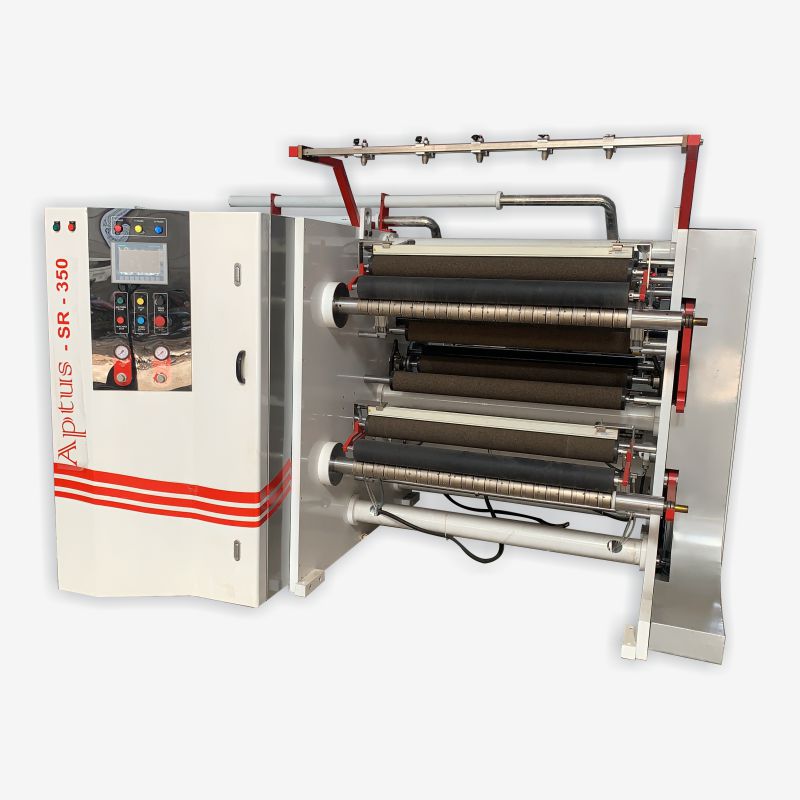

Aptus – SR – 350
Main Features:
- Intrigated Shaftless Unwinder
- Top and Bottom Direction Unwinder Roll Provision
- Slitting with Razor Blade System
- All Motor are AC Motor / A-Sys-Servo Motor
Material To be Slit:
- BOPP, BOPET, PET, LDPE,Plain-Printed Film, Coated OR Metallised (20 Micron to Micron)
- Laminated Film: Up to 200 Micron
- Rigid Film: 350 Micron
Optional Features:
- Hydraulic Floor Lifting For Unwinder Roll
- Manual Core Position Laser Line System
- Rewinder on 152mm Core ID
- Active Static Eliminator For Remove Static
- Trim Winder Unit For Collect Waste Trim
TECHNICAL SPECIFICATION
| PARTICULAR | TECHNICAL SPECIFICATION |
|---|---|
| Model | Aptus – SR –350 |
| Unwinder Type | Shaftless Unwinder |
| Machine Max Web Width | 1000mm / 1300mm |
| Machine Min Web Width | 350mm / 400mm |
| Maximum Unwinder Dia | 1000 mm |
| Maximum Unwinder Weight | 600 kg |
| Maxium Rewinder Dia | 600 mm |
| Maximum Rewinder weight | 200 Kg Each Shaft |
| Maximum Slitting Size | 800 mm |
| Minimum Slitting Width | 50mm and 25mm Optional |
| Unwinder Core ID | 76mm and 152mm |
| Rewinder Core ID | 76mm and 152 Optional |
| Speed | 350 MPM |
| Material To be proceed | 10 Microns to 180microns (Film / Foil / Paper / Laminates ) |
Aptus – ECO – 200
Main Features:
- Intrigated Shaftless Unwinder
- Top and Bottom Direction Unwinder Roll Provision
- Slitting with Razor Blade System
- All Motor are AC Motor
Material To be slit:
- BOPP, BOPET, PET, LDPE,Plain-Printed Film, Coated OR Metallised (20 Micron to Micron)
- Laminated Film: Up to 200 Micron
Optional features:
- Manual Core Position Laser Line
- System Rewinder on 152mm Core ID
- Trim Winder Unit For Collect Waste Trim
TECHNICAL SPECIFICATION
| PARTICULAR | TECHNICAL SPECIFICATION |
|---|---|
| Model | Aptus – ECO – 200 |
| Unwinder Type | Shaftless Unwinder |
| Machine Max Web Width | 800mm / 1000mm |
| Machine Min Web Width | 250mm / 350mm |
| Maximum Unwinder Dia | 800 mm |
| Maximum Unwinder Weight | 400 kg |
| Maxium Rewinder Dia | 500 mm |
| Maximum Rewinder weight | 150 Kg Each Shaft |
| Maximum Slitting Size | 600 mm |
| Minimum Slitting Width | 50mm |
| Unwinder Core ID | 76mm and 152mm |
| Rewinder Core ID | 76mm |
| Speed | 200 MPM |
| Material To be proceed | 10 Microns to 180microns (Film / Foil / Paper / Laminates ) |
